SMT Crystal Oscillator Teardown

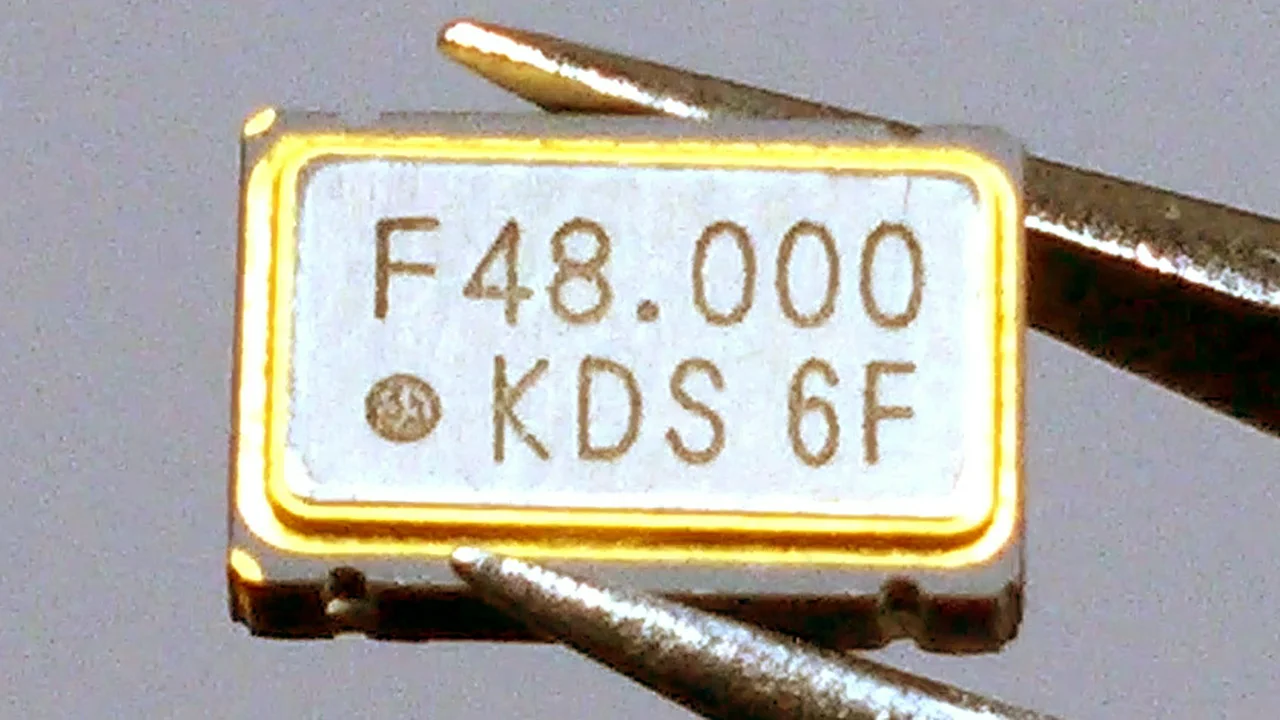

Taking a look at the construction and inner workings of a common SMT ceramic LCC package quartz crystal oscillator from Daishinku Corporation (KDS) manufactured in the late 1990s.<br /><br /><br />The quartz strip resonator measures 4.96 x 2.46 x 0.10 mm, I suspect it is 80 MHz and divided by 2 on the silicon however I don't know what frequency constant to use to confirm this.
