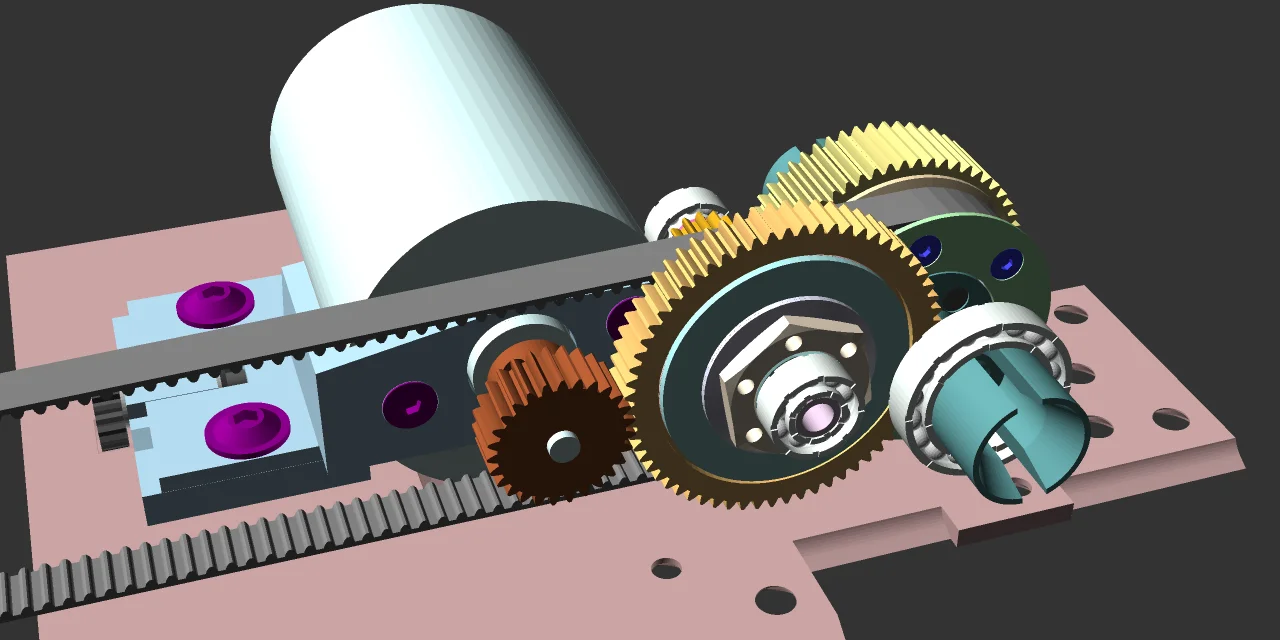

4WD Overview
4WD design for 1/10th scale electric off-road radio controlled vehicle. A quick overview.<br /><br />Some of the details shown.<br />belt: S2M 6mm<br />pulley tooth counts, front&rear: 42<br />gears: 48 pitch, pressure angle 25 degrees<br />pinion gear tooth count: 27 (minimum is 23, maximum 35)<br />spur gear tooth count: 64 (minimum is 59, allows 40t pinion gear)<br />drive gear tooth count: 16<br />diff gear tooth count: 59
